The Model 136 is an advanced liquid helium level controller which incorporates AMI's patented sample-and-hold design with automatic helium level sensor vacuum burnout protection. The Model 136 is ideal for unattended operation in systems where it is important to monitor and control the liquid helium level while also minimizing the helium losses.

Automated fill and alarm functions

The Model 136 Liquid Helium Level Controller supplements the liquid helium measurement function with automatic control capabilities. Two independent setpoints are front panel programmable from 0 to 100 percent. The "A" and "B" control band setpoints activate a power receptacle on the rear panel. When the helium liquid level drops below the "B" setpoint, the power receptacle is energized and remains energized until the liquid level rises to the "A" setpoint. The Model 136 can be used with unattended systems where automated fills are required.

The Model 136 also provides "High" and "Low" alarm setpoints which activate front panel LED warning indicators and rear panel relay outputs in the event of an overfill or liquid loss condition. The alarms also energize an audible warning which can be silenced from the front panel. "High" and "Low" setpoints are programmable from 0 to 100 percent of sensor active length.

Minimal liquid helium losses

In order to minimize liquid helium loss, the Model 136 automatically energizes the liquid helium level sensor at user programmable time intervals and monitors the normal (resistive) zone as it progresses from the top of the sensor toward the liquid surface. As soon as the normal zone reaches the liquid surface, the level reading is saved and the current in the sensor is turned off until the next sample interval occurs. An LED sensor current indicator is illuminated during each sample. Sample intervals are user programmable from the front panel and can be set between "0.0" (continuous reading) to "600.0" minutes or hours. A manual update switch provided on the front panel can also be set to obtain continuous readings during a helium transfer period or to manually force an immediate measurement.

Sensor burnout protection

The Model 136 provides automatic helium level sensor vacuum burnout protection. A liquid helium level sensor energized in a vacuum environment will self-heat to the point of burnout within seconds. AMI’s innovative microprocessor-based circuitry detects incipient sensor burnout and de-energizes the sensor before damage can occur. A 5% increase in sensor resistance will trigger this protection, causing the current to be switched off for 6 seconds before attempting to resume normal operation.

Convenient display

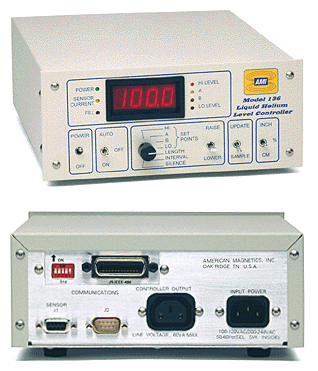

The Model 136 is equipped with a 4 digit LED digital display which provides liquid helium level indication in inches, centimeters, or percent as selected by a front panel switch. Front panel sensor calibration allows the user to calibrate the instrument quickly and easily for any length sensor. Calibration can be performed in either inches or centimeters of sensor active length with automatic reading crossover between inches, centimeters, and percent.

Remote computer monitoring or controlled operation

The Model 135-2K can be provided with an optional 0-10 volt DC signal on the rear panel of the instrument for use with a recorder. A 4-20 mA current loop option is available in lieu of the voltage signal. Computer interface options, including RS-232 Serial Port/Data Logger or IEEE-488, are also available.

View the Model 135-2k Manual (Technical Support page)



Model 136 Specifications at 25 °C

Level Measurements
Resolution:
0.1%, 0.1 cm, or 0.1 in
Accuracy:
± 0.5% of active sensor length
Linearity:
± 0.1 %
Sensor Current:
75 mA nominal
Sensor Voltage:
approx. 70 VDC for 80" active sensor length
Operating Parameters
HI and LO Alarms:
0% to 100% adjustable
HI/LO Alarm Relay Contact Ratings:
30 VAC or 60 VDC, 10 VA (up to 0.5 A max)
[normally open, closed on alarm]
Sample-and-Hold Period:
0.1 to 600.0 minutes (or hours)
A and B Control Setpoints:
0% to 100% adjustable
Controller Output:
AC line voltage @ 1A max current
Fill Timer:
0.1 to 600.0 minutes (or hours)
0-10 Volt Analog Output
Integral Non-linearity:
± 0.012 %
Resolution:
16 bits
Total Error:
± 1.1 %
Voltage Drift (0-10 V):
100 ppm  / °C
4-20 mA Analog Output @ 24 V
Vext Supply Range:
13-32 VDC
Integral Non-linearity:
± 0.012 %
Resolution:
16 bits
Total Error:
± 0.25 %
Current Drift (4-20 mA):
75 ppm  / °C
PSRR:
10 mA / V
Power Requirements
Primary*:
90-132 VAC or 180-264 VAC 50-60 Hz,
1.3 A
Physical
Dimensions (Standard):
97 mm H x 213 mm W x 273 mm D
(3.8" H x 8.4" W x 10.75" D)
Weight (Standard):
2.0 kg (4.3 lbs)
Dimensions (Rack Mount):
89 mm H x 483 mm W x 273 mm D
(3.5" H x 19" W x 10.75" D)
Weight (Rack Mount):
2.3 kg (5.0 lbs)
Environmental
Ambient Temperature:
Operating: 0 °C to 50 °C (32 °F to 122 °F)
Non-operating: -20 °C to 60 °C (-4 °F to 140 °F)
Relative Humidity:
0% to 95%; non-condensing

* Maximum active sensor length is limited to 68 inches for input line voltages below 105 VAC or 210 VAC.
